+91-9313323539Blown Film Machine
Brochure
A Blown Film Machine is an advanced plastic extrusion system designed to manufacture thin plastic films through the blown film extrusion process. It is widely used in the packaging and flexible film industry to produce high-quality polyethylene films in tubular form, which can be slit or sealed depending on application requirements.
The machine converts thermoplastic raw materials—typically polyethylene resins—into continuous film by melting, extruding, inflating, cooling, and winding the material into rolls. Blown film technology is preferred for its versatility, excellent mechanical strength, uniform thickness distribution, and cost-effective production capabilities.

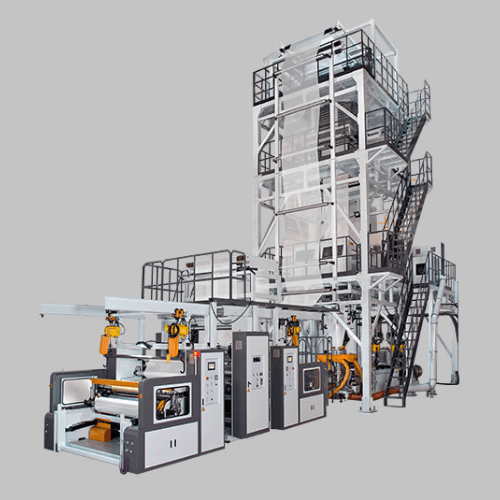

Two Layer & Three Layer Film Plant

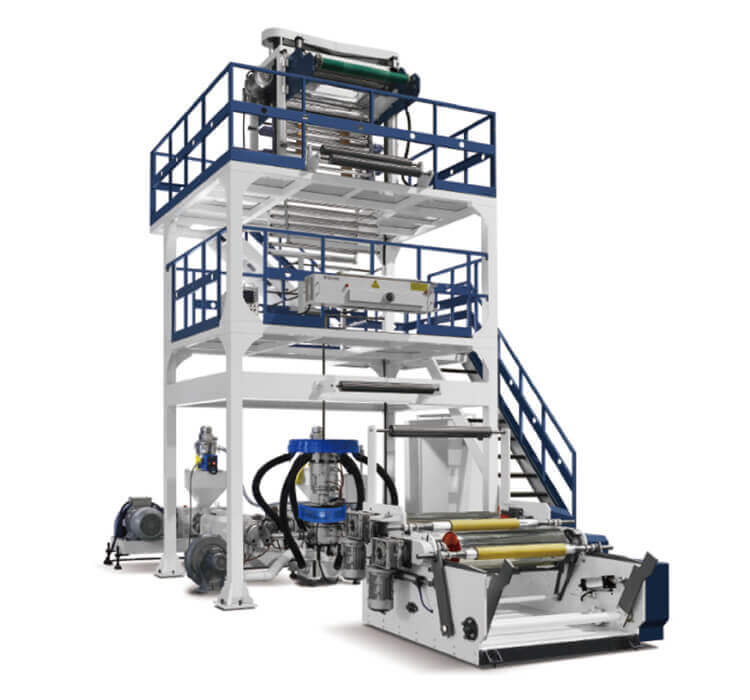

Mono Layer Blown Film Machine
- Single extruder
- Single-layer film (A)
- Used for simple packaging, carry bags, and liners
- Cost-effective and easy to operate
Two Layer Blown Film Machine (A+B)
- Two extruders
- Better strength & sealing properties
- Used for garbage bags, milk film, and industrial liners
Blown Film Machine – Technical Specifications
| Specification | Details – Blown Film Machine |
|---|---|
| Machine Type | Mono Layer / Two Layer (A+B) / Three Layer (A+B+A / A+B+C) Blown Film Plant |
| Material Processed | LDPE / LLDPE / HDPE / HM-HDPE / Reprocessed Material (Optional) |
| Film Width (Lay Flat) | 300 mm to 2000 mm (customizable as per requirement) |
| Film Thickness Range | 20 to 200 microns (depending on material & configuration) |
| Production Output | 50 – 150 kg/hr (based on screw diameter & motor power) |
| Screw Diameter | 45 mm – 65 mm (per extruder layer) |
| Screw L/D Ratio | 28:1 or 30:1 for efficient melting & mixing |
| Main Drive Motor | 15 HP – 40 HP AC Motor with VFD Control |
| Die Head Type | Spiral / Rotatory Die Head (Alloy Steel, Hardened & Polished) |
| Blow-Up Ratio (BUR) | 1:2 to 1:4 (adjustable) |
| Cooling System | High Efficiency Air Ring with Blower & Optional Chiller |
| Bubble Stabilization | Bubble Cage with Adjustable Collapsing Frame |
| Take-Up Unit | Surface / Center Winder with Tension Control System |
| Winder Type | Single Station / Double Station / Turret Winder (Optional) |
| Power Supply | 415V, 50Hz, 3 Phase |
| Control System | PLC Based Control Panel with Digital Temperature Controllers |
| Application | Carry Bags, Garbage Bags, Packaging Film, Agricultural Film, Shrink Film |
FAQs – Two Layer & Three Layer Film Plant
What is a Blown Film Machine?
A Blown Film Machine is an extrusion system used to manufacture plastic films by melting polymer resin and inflating it into a thin tubular bubble, which is then cooled and wound into rolls.
What materials can be processed in a Blown Film Machine?
Common materials include:
- LDPE (Low-Density Polyethylene)
- LLDPE (Linear Low-Density Polyethylene)
- HDPE (High-Density Polyethylene)
- HM-HDPE
Reprocessed / Recycled materials (depending on configuration)
What is the difference between Mono, 2-Layer, and 3-Layer machines?
- Mono Layer: Single material layer, suitable for basic packaging.
- 2-Layer (A+B): Improved strength and sealing properties.
- 3-Layer (A+B+A / A+B+C): Better mechanical strength, durability, and performance for advanced packaging.
What is the typical film thickness range?
Most blown film machines produce films between 20 to 200 microns, depending on die size, material, and machine configuration.
